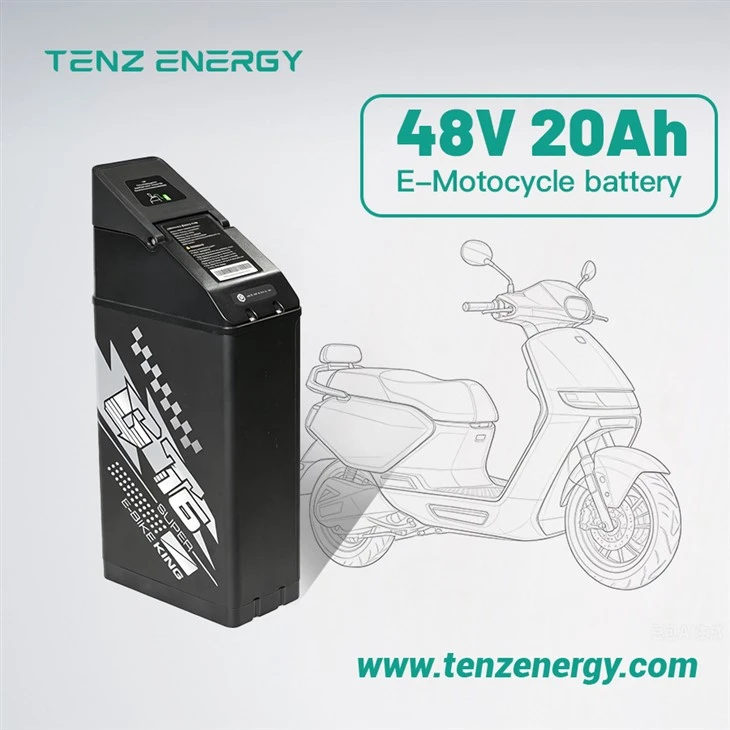

48V 20Ah Lithium Battery
Hunting for a swap-in or upgrade energy source for a 48V electric motorbike? This rechargeable lithium traction battery holds 960 Wh in 52 cylindrical 21700 cells, wired 13 in series and 4 in parallel. It tips the scale at close to 5.38 kg, and its management electronics let up to 30 A flow through separate input and output sockets.
Tell our team about your bike, motor driver and mains charger. They will weigh up how well the parts work together before you commit.
- Energy content: 960 Wh
- Body mass: roughly 5.38 kg
- Regular draw 10 A, maximum 30 A
- Cold-weather discharging to −20 °C
Technical Specifications
supply cost-effective lithium battery solutions
| Cell type |
NMC |
Factory Voltage | 49.5 ±0.5V |
| Rated Voltage | 48V | Minimum Capacity | 19Ah |
| Rated Capacity | 20Ah | Internal resistance | ≤150mΩ |
| Pack Method | 13S 4P | Weight | 5.38 ±0.1kg |
| Charge limiting voltage | 54.6V | Standard Charge Current | 3A |
| Maximum Charge Current | 4A | Discharge Cut-off Voltage | 35.1V |
| Standard Discharge Current | 10A | Maximum Discharge Current | 30A |
|
Working Ambient Temperature |
Charging：0 ～ 45℃ Discharge：-20 ～ 45℃ |
Storage Temperature |
One year ： -20～25℃ Three months ： -20～45℃ One month ： -20～60℃ |
How the 52 Cells Are Wired
Picture four cells lying side by side and sharing the load; together they offer 20 Ah. Thirteen of these quartets are then chained one after another, multiplying the voltage by thirteen. A fully filled cell sits at 4.2 V, so the chain peaks at 54.6 V. The 35.1 V floor works out to 2.7 V per quartet.
Because the management electronics split charging and discharging onto separate sockets, the charger and the motor driver never share a socket. Socket kinds and conductor pinout are printed on the interface diagram that accompanies the datasheet.
What a 30 A Maximum Means on the Road
The BMS passes up to 30 A. At 48 V, the very top of that range is close to 1.4 kW, which points toward lightweight two-wheelers rather than powerful long-haul bikes. The regular discharging figure in the data is 10 A.
Distance per charge hinges on motor consumption, rider weight, terrain and speed. The battery data states energy, not a range figure.
Where It Works
Likely roles: a swap-in battery for a 48 V light electric motorbike, daily travel, parcel couriers and hire programmes. Your riding pattern and distance expectations settle the final answer.
Approvals and Paperwork
Required approvals and freight paperwork differ by target country and by final version.
State the country, and we will reply with what we can supply for this model.
****************************************** 以下为FAQ版块 *****************************************
FAQ
Q1: What are the voltage and capacity of this lithium traction battery?
Q2: How many amps can the motorbike pull?
Q3: Is an outer shell included?
