51.2V 32KWh LiFePO4 home battery power storage
video
51.2V 32KWh LiFePO4 home battery power storage

51.2V 32KWh LiFePO4 home battery power storage

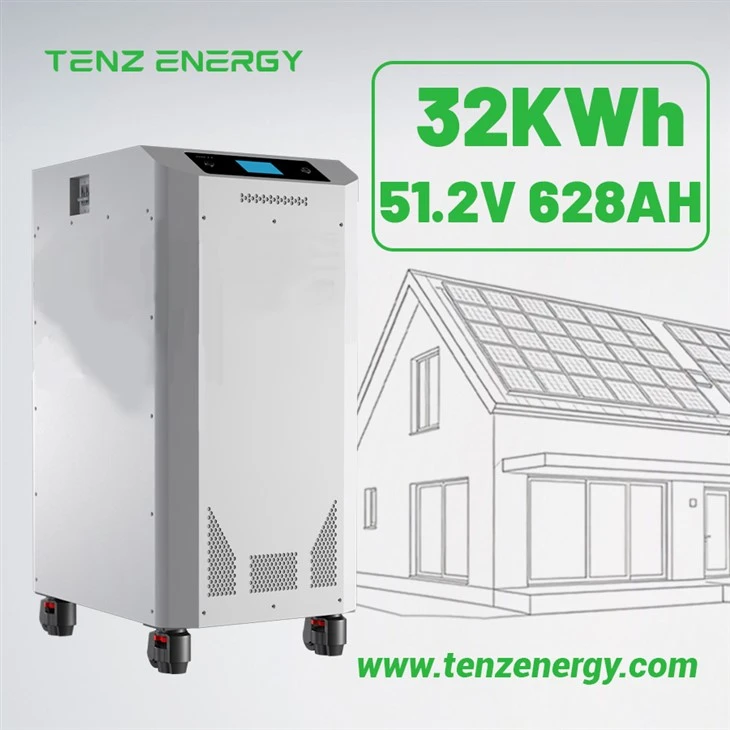

The MASON 560L-N is a 51.2V 628Ah LiFePO4 energy storage battery with 32kWh rated energy. Designed for residential and small commercial energy storage, it features a wheeled cabinet, intelligent BMS, CAN and RS485 communication, low-temperature heating, and support for up to 16 units in parallel.

01 Key Specifications








Parameter

Specification

Rated Energy

32KWh

Configuration

2P16S

Nominal Voltage

51.2V

Nominal Capacity

628Ah

Working Voltage

41.6V~57.6V

Rated Charge/Discharge Current

100A @25±2℃

Maximum Charging Current

200A @25±2℃

Cycle Life

8000 cycles @25℃, 100A charge/discharge, 80% DOD

Communication

CAN & RS485

Parallel Connection

Up to 16 packs

Weight

240kg±3kg

Dimensions

416×560×910mm

IP Rating

IP10









Why This Battery Fits Energy Storage Projects










High-Capacity 32kWh Configuration

With 51.2V nominal voltage and 628Ah nominal capacity, the battery provides 32kWh rated energy for energy storage projects requiring a larger battery capacity.

Expandable Battery Capacity

Up to 16 battery packs can be connected in parallel, allowing the battery system capacity to be expanded according to project requirements.

Active Cell Balancing

The BMS uses active balancing with a 2.5A balancing current to manage cell voltage differences according to the configured BMS logic.

BMS Monitoring and Fault Records

The BMS monitors cell voltage and temperature, estimates remaining capacity, and records battery operating and fault information. Historical fault records can store up to 500 records.

CAN and RS485 Communication

CAN and RS485 interfaces are provided for battery monitoring and system communication. CAN communication is used for communication with compatible inverter/PCS equipment, while RS485 is available for battery information collection.




product-614-876









Technical Specifications





Electrical Parameters

Rated Energy: 32KWh

Configuration: 2P16S

Nominal Voltage: 51.2V

Working Voltage: 41.6V~57.6V

Nominal Capacity: 628Ah

Rated Charge/Discharge Current: 100A @25±2℃

Maximum Charging Current: 200A @25±2℃



Environmental Parameters

Charging Temperature: 0–40℃

Discharging Temperature: -20–40℃

Storage Temperature/Humidity: -10~35℃ within one month; 25±2℃ within three months; 65%±20% RH

Humidity: 5–80%

Altitude: 0–3000m

Recommended operating condition: 10–30℃



Physical Parameters

Weight: 240kg±3kg

Dimensions: 416×560×910mm

IP Rating: IP10





○ Appearance and interface



product-816-500





○ BMS & Battery Protection

The integrated BMS provides monitoring and protection functions for the battery pack. It measures individual cell voltage, monitors battery, ambient and MOS temperature, estimates remaining capacity, records operating and alarm information, and supports configurable BMS parameters.



- Battery voltage sampling: 16 cells; deviation ±20mV

- Temperature sensors: 4 battery sensors + 1 ambient sensor + 1 MOS sensor; deviation ±2℃

- Remaining capacity accuracy: within 5% deviation

- Historical fault records: up to 500

- Working modes: charging, discharging, standby, power off

- Protection functions include hardware protection, battery protection, high/low temperature protection and output short-circuit protection


RS485 connectors definition

product-862-794



○ LED lights
One running indicator (Green)
One warning indicator (Red)
And four capacity indicator (Green)


product-1280-152



○ Active Balancing

The active balancing function uses a 2.5A balancing current and operates during standby,

charging and discharging according to the configured logic.



Start voltage difference: 50mV

Stop voltage difference: below 30mV

Default balancing: 4-way

Maximum simultaneous balancing: 6-way



○ Heating Function



The battery includes a heating function for low-temperature charging conditions.

Heating starts at 0℃ and stops at 10℃ when the battery is connected to a charger and the cell temperature reaches the configured setting.

The heating function is disabled in standby and discharge modes.





○ Quality & Traceability



Product-level technical information is available for project evaluation, including electrical parameters, BMS functions, communication interfaces, operating conditions, installation requirements and packaging information.





○ Packaging

Packaging Parameter

Specification

Package Quantity

1 set

Package Dimensions

660×510×1033mm

Package Weight

250kg

Packaging

Plastic film / EPE / carton; dry, dust-proof and moisture-proof packaging





○ Harness connection



The battery should be turned off before connecting.


product-840-1056





○ Communication & System Integration









Item

Specification

Battery Voltage

51.2V nominal; 41.6V~57.6V working voltage

Capacity

628Ah / 32KWh

Communication

CAN / RS485

CAN Baud Rate

500KBITS/S

RS485 Baud Rate

19200bps

Parallel Connection

Up to 16 packs



Inverter and PCS compatibility should be confirmed based on voltage range, current requirements and communication protocol before system integration.





○  Installation Requirements



The battery should be installed on a concrete or other non-flammable surface with sufficient clearance for heat dissipation.

The installation area should be dry and well ventilated.



- Do not place the battery on flammable building materials.

- Recommended installation in a cabinet.

- Leave sufficient free space for heat dissipation.

- Do not stack the batteries.

- Avoid water and other liquids.

- Do not open or modify the battery.









04 OEM & Project Support











The MASON 560L-N is available for energy storage projects requiring a 51.2V 32kWh battery configuration. Project requirements such as battery quantity, installation environment and communication requirements can be reviewed before system integration.

product-512-518



05 Applications










product-974-444

Small Commercial Energy Storage

Suitable for selected small commercial projects requiring higher battery capacity, system expansion and communication with compatible PCS or inverter equipment.

product-952-428

Backup Power



The 32kWh capacity can be used as a battery source for backup power systems. Actual backup duration depends on connected load, inverter capacity and operating conditions.

product-750-350

Residential Solar Energy Storage

Suitable for residential energy storage projects that require a larger battery capacity for storing solar energy and supporting household loads.



product-678-350

 FAQ

What communication interfaces are available?



The battery provides CAN and RS485 communication interfaces.



What is the operating temperature range?



The specified charging temperature is 0–40℃ and the discharging temperature is -20–40℃.

Does the battery have a heating function?



Yes. The battery includes a heating function for low-temperature charging conditions. Heating starts at 0℃ and stops at 10℃ under the specified activation conditions.



What is the bulk lead time?



Lead time should be confirmed according to order quantity, product requirements and production schedule.





○ Before Ordering

  - Inverter or PCS model

  - Required battery capacity

  - Required number of battery packs

  - Installation environment

  - Communication requirement



Please confirm the above information before system integration so the battery configuration and communication requirements can be checked.
