51.2V 628Ah 32kWh solar power batteries for home
video
51.2V 628Ah 32kWh solar power batteries for home

51.2V 628Ah 32kWh solar power batteries for home

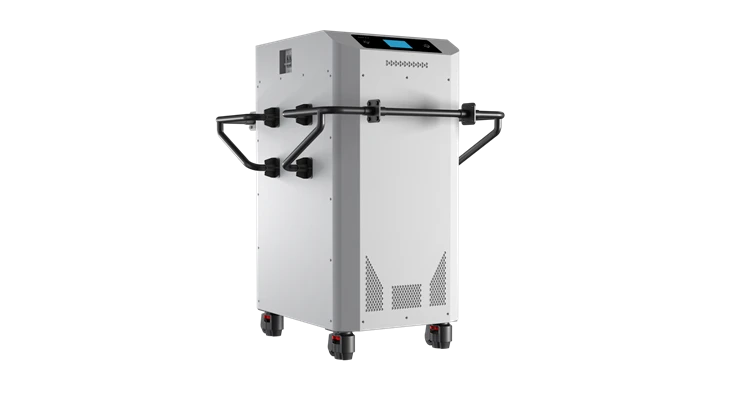

The MASON 560L-N is a 51.2V 28.67kWh LiFePO4 energy storage battery designed for residential and commercial energy storage applications. It uses a 2P16S configuration and an intelligent BMS with CAN and RS485 communication. Each pack supports connection of up to 16 packs in parallel for capacity expansion. Battery packs from different brands or models should not be connected in parallel.
Capacity note: The source page lists 280Ah as the nominal capacity and also contains a 560Ah reference in the product description. Because the source page is internally inconsistent, this revised content keeps 280Ah as the published parameter and does not convert it to 560Ah without technical confirmation.

Quick Specifications






Item

Specification

Model

MASON 560L-N

Battery Chemistry

LiFePO4

Rated Energy

32kWh

Configuration

2P16S

Nominal Voltage

51.2V

Nominal Capacity

628Ah

Working Voltage

41.6V–57.6V

Rated Charge/Discharge Current

100A @ 25±2°C

Maximum Charging Current

200A @ 25±2°C

Communication

CAN & RS485

Cycle Life

8000 cycles @25°C, 100A charge and discharge current, 80% DOD

IP Grade

IP10

Weight

240kg ±3kg

Dimensions

416 × 560 × 910mm

Parallel Connection

Up to 16 packs



1. Product Overview









The MASON 560L-N is an integrated energy storage battery for residential and commercial energy storage systems. The battery pack uses 3.2V 314Ah LiFePO4 cells in a 2P16S configuration to provide 51.2V nominal voltage and 628Ah nominal capacity. Each pack supports connection of up to 16 packs in parallel to expand storage capacity. Battery packs from different brands or models should not be connected in parallel.


product-470-690

2.BMS Functions & Protection



- 16 battery voltage sampling channels with a deviation of ±20mV.

- Four battery temperature sensors, one ambient temperature sensor and one MOS temperature sensor, with a deviation of ±2°C.

- Battery capacity estimation accuracy within 5% deviation.

- Charging/static cell balancing strategies can be flexibly configured.

- Protection against overvoltage, undervoltage, overcurrent and short circuit.

- Cell discharge overheat protection engages at 55°C and resumes at 50°C.

- MOS overtemperature protection disconnects power output at 100°C and restores output at 85°C.

- Excess ambient temperature protection powers the unit off at 60°C and restarts at 55°C.

- Built-in low-temperature heating activates during charging below 0°C.





02 Detailed Technical Parameters





Parameter

Specification

Rated Energy

32kWh

Configuration

2P16S

Nominal Voltage

51.2V

Working Voltage

41.6V–57.6V

Nominal Capacity

628Ah

Rated Charge/Discharge Current

100A @25±2°C

Maximum Charging Current

200A @25±2°C

Working Temperature

0–40°C (Charge); -20–40°C (Discharge)

Weight

240kg ±3kg

Dimensions

416 × 560 × 910mm

Storage Temperature & Humidity

-10°C to 35°C (within one month); 25±2°C (within three months); 65%±20% RH

Cycle Life

8000 cycles @25°C, 100A charge and discharge current, 80% DOD

IP Grade

IP10

Communication Mode

CAN & RS485

Humidity

5–80%

Altitude Limit

0–3000m





○ Appearance and interface



product-816-500



○ CAN & RS485 Communication



The BMS transmits information through the CAN interface at a baud rate of 500 Kbit/s. The CAN interface uses an 8P8C connector.
The CAN interface can communicate with an inverter or CAN test equipment,
while RS485 collects battery information. CAN then transmits battery pack information to the PCS

CAN connector definition

product-884-954







3.Product Features







Real-Time LCD Monitoring

Built-in LCD screen and LED status indicators show cell voltage, temperature and SOC.

Stores up to 500 historical fault records.

Supports routine checks of residential and commercial energy storage systems.

Wide Temperature Operation

Charging ambient range: 0–40°C.

Discharge working range: -20–40°C.

Integrated low-temperature heating component.

Triple temperature sensing design.





4 Export Documentation









UN38.3 transport test reports and MSDS files are provided for lithium battery logistics.

Destination-country and shipping requirements should be confirmed before shipment.

OEM & Customization

OEM services are available for qualified projects. Customization described on the source product page includes cabinet appearance, brand logos and selected CAN/RS485 communication parameters. Parallel connection settings and protection thresholds can also be customized according to project requirements. The output port layout follows the standard design and cannot be changed.

product-512-518



5 Application Scenarios










product-974-444

Residential Solar Energy Storage

Suitable for residential photovoltaic energy storage and backup power applications. Multiple battery packs can be connected in parallel, with CAN/RS485 communication.

product-952-428

Home Backup Power

Provides backup power for household loads such as lights, refrigerators, routers and water pumps, with BMS protection functions.

product-750-350

Apartments, Villas & Rural Houses

The integrated energy storage unit provides 32kWh rated energy and supports LCD/LED monitoring for battery status and routine maintenance.





Manufacturing & Quality Information



product-710-122



TENZ ENERGY states that it has more than 20 years of experience in the lithium battery industry, an R&D laboratory with professional testing equipment, a digital PLM R&D system and full-process closed-loop quality control.















Real-time recording of manufacturing data from cell grading to aging testing.

Traceability from battery packs to original cell batches and factory inspection archives.

PR, ECR and ECN engineering revision control processes.







product-552-362
Expert R&D Team
product-684-506
20+ Years in Li-battery Industry
product-684-442
Digital PLM R&D System



product-678-350

 FAQ

Is the 51.2V 628Ah battery compatible with solar inverters?



The battery supports CAN and RS485 communication for integration with compatible inverters and power conversion systems. Inverter compatibility should be confirmed based on the inverter model and communication protocol before installation.



How many battery packs can be connected in parallel?



Each pack supports up to 16 packs in parallel for capacity expansion. Battery packs from different brands or models should not be connected in parallel.

What is the cycle life of the battery?



The specified cycle life is 8000 cycles at 25°C, with 100A charge and discharge current and 80% DOD.



What is the operating temperature range?



The specified charging temperature range is 0–40°C and the discharge working range is -20–40°C. A low-temperature heating function is included for charging below 0°C.







Technical Notes

All specifications in this document are based on the supplied product page. Where the source page contains inconsistent or unsupported wording, this revised version uses the detailed parameter table and product information as the primary reference. The nominal capacity is stated as 628Ah because the detailed technical parameter section specifies 628Ah and the 2P16S configuration with 3.2V 314Ah cells corresponds to 628Ah.
