01 Product Overview

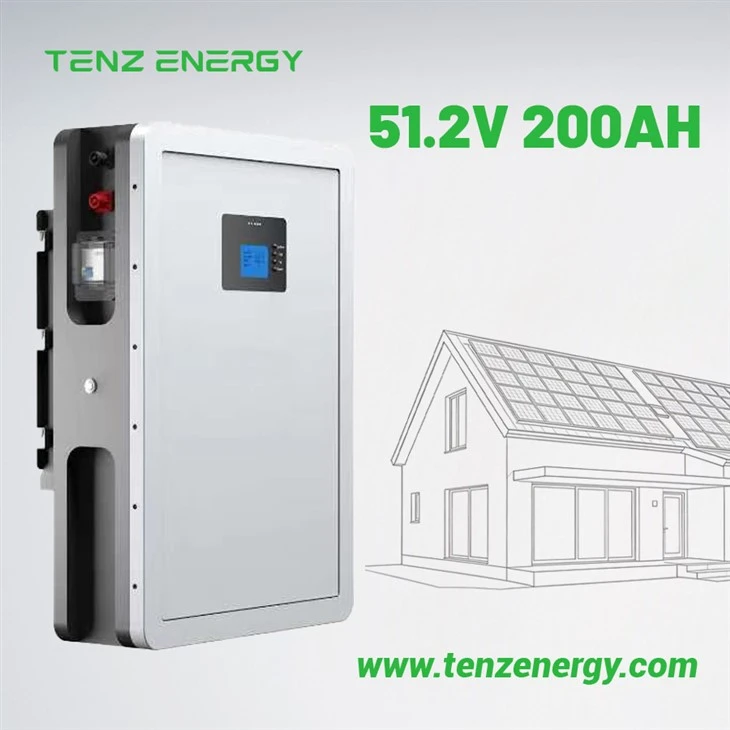

10.24KWhKWH RESIDENTIAL ENERGY STORAGE
and commercial energy storage system, which is assembled with
3.2V 200Ah lithium iron phosphate cell in 4P16S configuration, And
intelligent BMS form 51.2V200Ah lithium battery system. Each pack
support 16packs in parallel to easily expand capacity. Do not mix parallel the battery packs of different brands or models.
Functions
- Battery voltage calculation: 16 battery voltage sampling test,
deviation ± 20mV - Battery and ambient temperature detection: 4 battery temperature
sensors, 1 ambient temperature sensor, 1 MOS temperature sensor,
deviation ± 2 ℃. - Battery capacity and cycle times: complete a complete charging,
discharging cycle to set the actual capacity. Monitor the remaining
capacity of the battery with the capacity estimation accuracy within
5% deviation. In addition, the charging and discharging cycle time
and the complete charging and discharging cycle time can be
configured.
02 Detailed Parameters
○ Multi-Tier Safety Safeguards via Intelligent BMS
| Battery Configuration | 4P16S | Operating temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Ratedvoltage | 51.2V | Storage temperature and humidity | -10℃~35℃(Within one month of storage) 25±2℃(Within three months of storage) |
| Operating voltagerange | 42V~58.4V | Dimensions(LxWxH) | 920×550×205mm |
| Rated capacity | 200Ah | weight | 95Kg±3kg |
| Rated | 10.24KWh | Cycle life | 4800 cycles @25℃ 50Acharge and discharge current 90% DOD |
| Standard charge/discharge current | 50A@25±2℃ | IPRating | IP 65 |
| Maximum charging current | 100A@25±2℃ | Communication | CAN&RS485 |
| Maximum discharge current | 100A@25±2℃ | Altitude | 0-3000m |
○ Electrical schematic diagram
○ Parallel
When connected in parallel with RS485 connectors. CAN connectors act as upper communication interface. End devices could get the collected
battery information through CAN interface RS485 connector connection:
○ Wiring Diagram
03 Core Advantages
TENZ ENERGY self-developed energy storage unit adopts long-service-life LFP cells
and vertical all-in-one integrated structure to simplify installation procedures.
Equipped with high-end smart BMS featuring full-range safety safeguards,
it meets diverse energy storage application demands for commercial and industrial energy storage system scenarios.
04 Global Certification & Customization
Supported by seasoned global supply chain systems and complete port logistics networks, bespoke
products enjoy swift worldwide delivery, assuring efficient progress for every cooperation deal.
Global Service & Tailored Custom Options
Customizable Items: TENZ ENERGY offers OEM tailor services covering housing styling, personalized brand logos, as well as modifiable CAN and RS485 dual communication specs to align with technical requirements of different territories. The output port layout follows fixed standard designs and cannot be altered on request. Cooperation Modes: We welcome worldwide distributors, bulk dealers and solar engineering contractors to collaborate. Sample orders, large-volume bulk supply and region-exclusive parameter tuning solutions are all available to satisfy various overseas market requirements.
Why Choose Tenz energy?
Green Intelligence · Creating a Zero-Carbon Future
Our Commitment:
We keep advancing our technology to manufacture reliable, long-cycle and high-performance energy storage products.
Perfect for household solar energy storage, emergency power supply and light commercial operation,
TENZ ENERGY provides trustworthy power solutions to maintain your regular power consumption.
Rich Industry Experience & R&D Capability
High-standard R&D laboratory, equipped with professional testing equipment
to ensure industry-leading performance and safety for our batteries.
Full-Process Closed-Loop Quality Control
Every manufacturing procedure, from cell grading to aging testing, records live operational data. This achieves complete traceability of the whole production flow and enables precise accountability for all quality issues.
We adopt closed-loop engineering revision control covering PR, ECR and ECN processes. Every energy storage battery pack is traceable back to its original cell batches and full factory inspection archives.
Authoritative Global Export Certifications
Core Benefits of Cooperation
Professional Integrated Manufacturer Providing Lithium Energy Storage Batteries for Global Household and Small Commercial Scenarios
High Adaptability
5.12kWh standard energy storage batteries are readily available, with flexible ODM customization support and compatibility with globally popular residential solar inverters.
Compliance & Peace Of Mind
All our battery products come with complete UN38.3 and MSDS lithium cell credentials, allowing smooth international transport, customs clearance and global sales without extra troubles.
FAQ
1.Is this battery compatible with household solar inverters?
Absolutely. This storage device is fitted with premium smart BMS, delivering outstanding adaptability to widely used solar inverters. It works seamlessly with residential small PV energy storage setups.
02. Do you accept sample test orders?
We accept trial sample orders. Please forward your full technical requirements to our sales department, and we'll calculate a precise quote promptly.
03. Can we customize the shell color and brand logo?
We provide comprehensive OEM tailor-made solutions, such as custom shell color tones, exclusive brand logo printing, along with personalized user guides and outer package designs.
04.How many days will bulk goods take to deliver?
Automated mass production equipment keeps our weekly output stable. We start production promptly once your deposit is verified, so we can deliver all goods on schedule.
