76.8V High Power Lithium Battery: 60Ah 24S3P Pack for E-mobility
Need dependable high-voltage energy for a demanding vehicle? This 76.8V high power lithium battery combines 60Ah of LiFePO4 capacity with a 24S3P layout, 100A continuous discharge and 150A peak output. Configured as a removable e-mobility battery, it gives electric motorcycles and other high-power e-mobility vehicles a strong high capacity long range battery solution, and its enclosure, connectors and BMS can be tailored through OEM/ODM service.
Technical Specifications
supply cost-effective lithium battery solutions
| Cell type |
LFP |
Factory Voltage | 49.5 ±0.5V |
| Rated Voltage | 48V | Minimum Capacity | 26.1Ah |
| Rated Capacity | 27Ah | Internal resistance | ≤150mΩ |
| Pack Method | 13S 6P | Weight | 7.2 ±0.1kg |
| Charge limiting voltage | 54.6V | Standard Charge Current | 3A |
| Maximum Charge Current | 5A | Discharge Cut-off Voltage | 35.1V |
| Standard Discharge Current | 5.4A | Maximum Discharge Current | 45A |
|
Working Ambient Temperature |
Charging：0 ～ 45℃ Discharge：-20 ～ 45℃ |
Storage Temperature |
One year ： -20～25℃ Three months ： -20～45℃ One month ： -20～60℃ |
Product Features
High Power Delivery
A 100A continuous and 150A peak rating lets this 76.8V high power lithium battery feed strong motor controllers. At nominal voltage, 100A equals roughly 7.7kW of sustained output, limited by your controller's settings.
High Capacity, Long Range Potential
With 60Ah and about 4.6kWh on board, this high capacity long range battery gives riders more energy per charge. Real-world range still depends on vehicle weight, motor efficiency and riding style.
Removable E-mobility Design
Built as a removable e-mobility battery, so the pack can be taken off the vehicle for charging or service where your frame and mounting layout allow.
LFP Cell Chemistry
Lithium iron phosphate cells in a 24S3P arrangement deliver a steady 76.8V nominal output and a 1200-cycle rated life.
All-Weather Operating Range
Discharge is supported from -20°C to 65°C, while charging runs between 0°C and 45°C.
IP65 Battery Box
The sealed enclosure is rated IP65 and specified for humidity up to 95% and altitudes up to 4000m.
OEM/ODM Battery Customization
Need a version tuned to your own platform? This 76.8V LiFePO4 pack can be adapted after an engineering evaluation. Common customization areas include:
- Pack Layout: Series and parallel arrangement for your voltage and range goals.
- Current Rating: Continuous and peak output matched to the motor and controller.
- Case Design: Shape, size and mounting structure for your frame.
- Plugs and Cables: Discharge connector, cable gauge and charge port selection.
- BMS Settings: Protection thresholds and communication protocol.
To open a project, send the bay dimensions, motor power, controller current limit, connector information and charger details. We will evaluate the request and confirm the final battery specification before production starts.

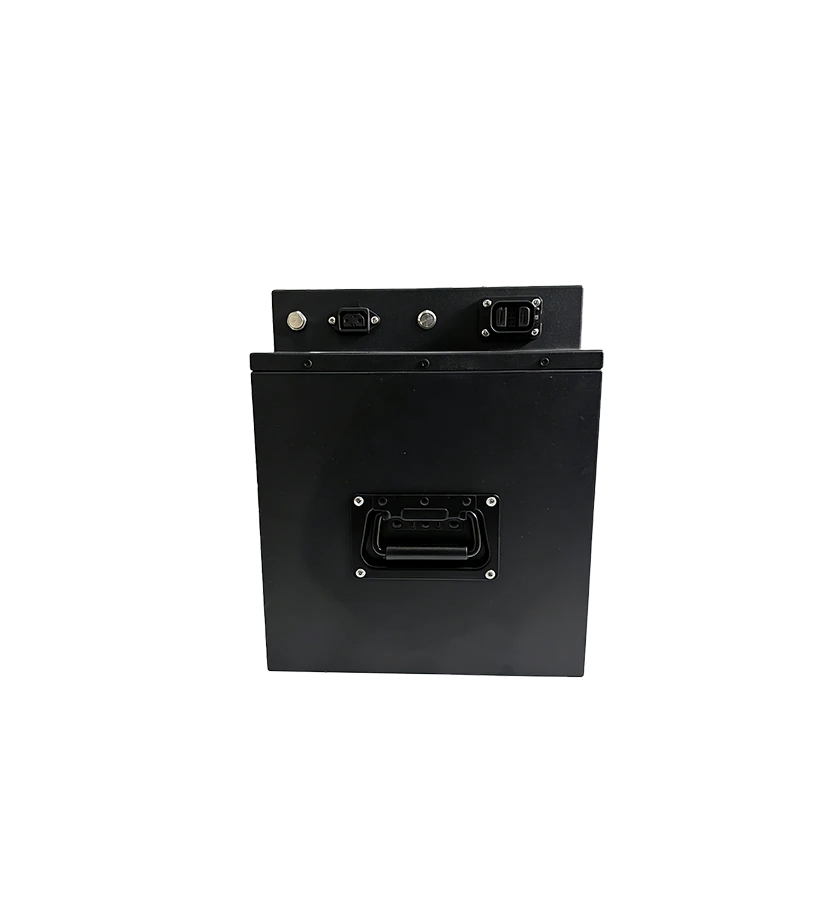

Product front
Product side

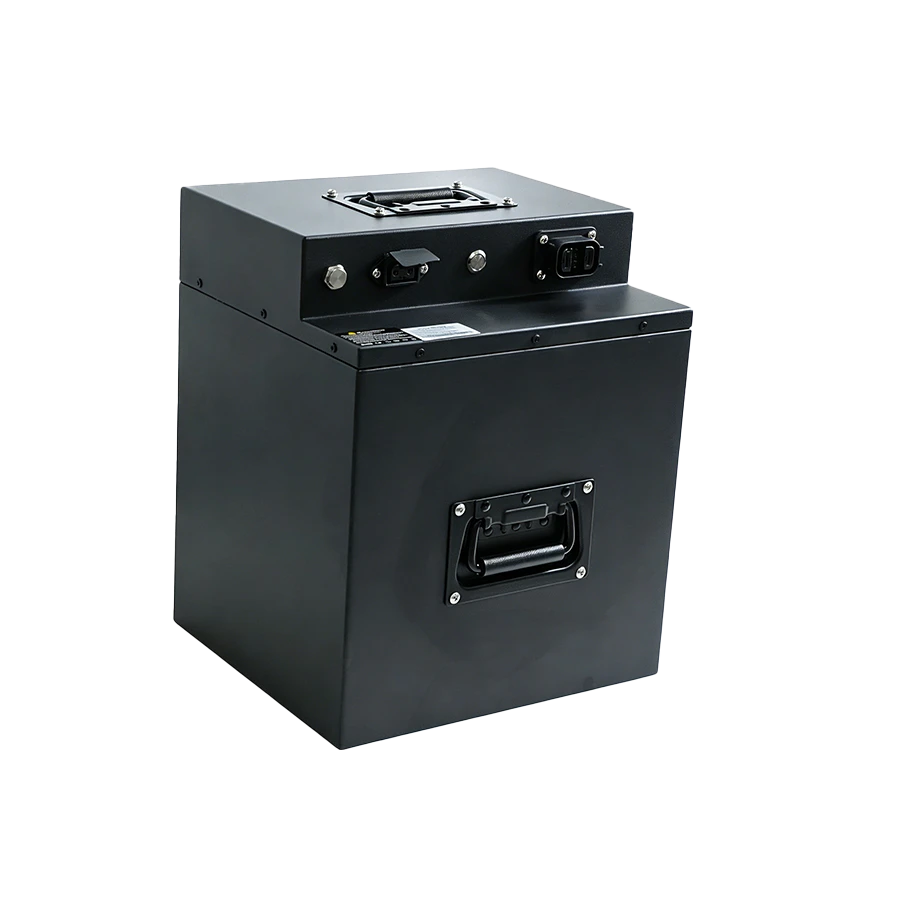

45° side view of the product
Top view
Applications and Compatibility
Choose this pack for electric motorcycles and other e-mobility vehicles engineered around a 76.8V system, especially where strong acceleration and a high capacity long range battery matter. It also suits OEM and ODM programs that need a purpose-built removable e-mobility battery with a custom case or connector layout.
BMS, Enclosure and Connections
Battery Management System (BMS)
Protection limits for voltage, current, short circuit and temperature can be tuned to suit your controller and duty cycle. If your vehicle needs data exchange, name the interface (CAN, RS485, UART or other) and we will review it.
Housing and Electrical Connections
Case dimensions, mounting points, discharge connectors and the charging port can all be matched to the room on your vehicle. Send the bay size, plug type and mounting requirements to begin.
Certification and Compliance
Required test reports and compliance paperwork vary with the pack configuration and the country of sale. Share your destination market and standards when asking for a quotation, and we will advise which documents apply to this 76.8V high power lithium battery.
FAQ
Q1: How much energy does this 76.8V high power lithium battery store?
Q2: Can it supply high-power motors?
Q3: What charging setup does it need?
Q4:How heavy is the removable e-mobility battery, and what are its dimensions?
Q5: What cycle life and temperature range can I expect?
Get a Quote for the 76.8V High Capacity Long Range Battery
Tell us your vehicle model, bay dimensions, motor and controller specifications, connector type and charger requirements. We will propose a matching 76.8V lithium battery pack.
